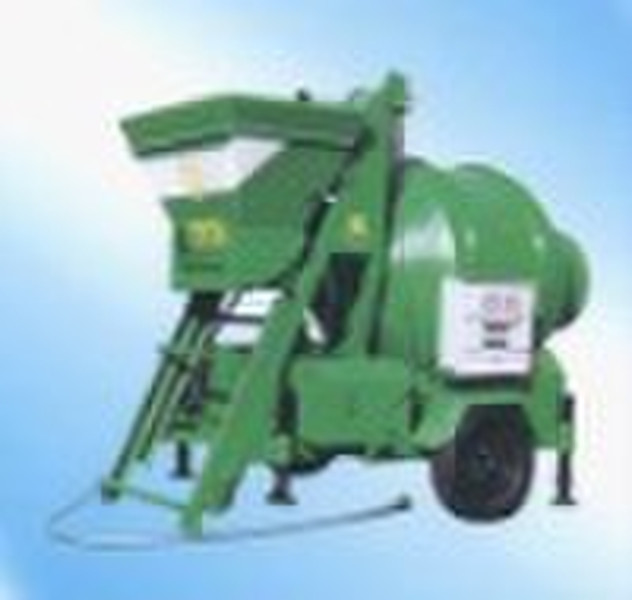

JZC350 construction machinery

1. Description of JZC350 construction machinery: JZC350 series construction machineryare self-loading concrete mixers which can mix plastic and half dry hard concrete. The machine mixes when the double-cone mixer drum rotates clockwise and discharges when it rotates reversally. The mixer drum is driven by the ring gear. It has strong points such as reliable rotation, low noise and energy consumption, compact structure, smooth running. Moreover easy operation, high quality mix and production efficiency are also its advantages. it is the ideal machines for construction sits, road, bridge project, small and medium concrete components factory. 2. Main technical parameters: ModelJZC350WorkingPerformanceDischarging Capacity350LCharging Capacity560LProduction Capacity10-14m3/hMixer Canister Rev Speed14 r/minMax Aggregate Diameter60mmWater Supply Precision≤2%MotorStirring Motor5.5 kwLifting Motor5.5kwPump Motor0.55 kwTire Specifications6.50-16Max.Towing Velocity20km/hOverall Dimensions(LxWxH) (mm)2776*2140*3000Total Weight1950kg
