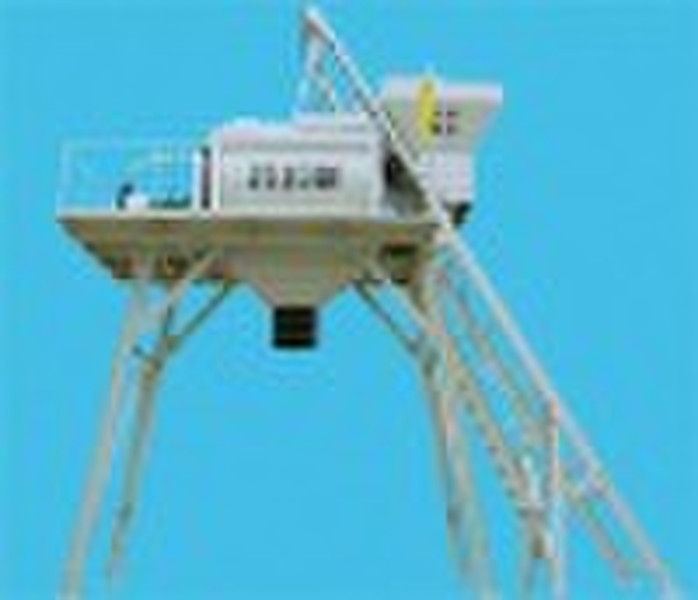

JS1500 Double Shaft Concrete Mixer

1.The concrete mixer is the advanced, ideal type at home and abroad. Good mixing quality, high automation and efficiency, low energy consumption and noise as well as easy operation are the advantages of it. Besides, it also has the strengths of high speed of discharging, long service life of liner and blades and easy maintenance. It applies for the mix of plastic concrete, dry concrete, light weight aggregate concrete and different mortars. Motorized discharge port is applied in the machine, which makes it could be matched with dump car. So it is the ideal machine for construction site and prefabrication. 2.Main technical Parameter. Model JS1500Discharging Capacity 1500LCharging Capacity 2400LProduction Capacity ≥90m3/hMax Aggregate Diameter 60-80mm(Cycle Time) (s) 60(Total weight) (kg) 11130Overall Dimensions(LxWxH)(mm) Travel State4720 x 2200 x 3300Operation State95530 x 3400 x 10860 Stirring Vane Rev Speed26.5 r/minQuantity2 x 8Stirring Motor Model Y180L-4Power 2 x 22 kwLifting Motor Model YEZ180L-4Power 18.5 kwPump Motor Model 50DWB20-8APower 3 kw
