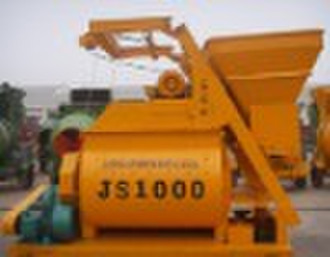

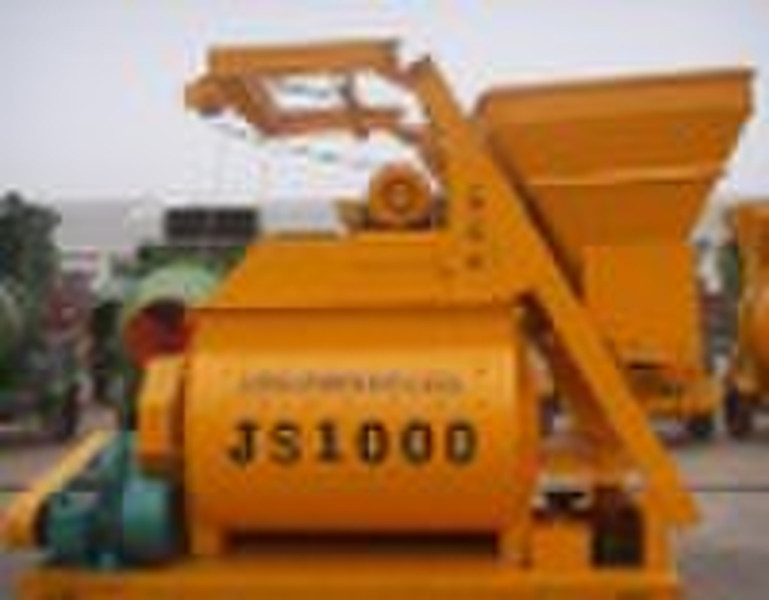

JS1000 concrete mixer

1. Description of JS1000concrete mixer JS1000 Double Shaft concrete mixing plant is the advanced, ideal type at home and abroad. Good mixing quality, high automation and efficiency, low energy consumption and noise as well as easy operation are the advantages of it. Besides, it also has the strengths of high speed of discharging, long service life of liner and blades and easy maintenance. It applies for the mix of plastic concrete, dry concrete, light weight aggregate concrete and different mortars. Motorized discharge port is applied in the machine, which makes it could be matched with dump car. So it is the ideal machine for construction site and prefabrication. 2. Main technical parameters: ModelJS1000Discharging Capacity1000LCharging Capacity1600LProduction Capacity≥60 m3/hMax Aggregate Diameter60-80mm(Cycle Time) (s)60(Total weight) (kg)8700Overall Dimensions(LxWxH)(mm)Travel State4320 x 2200 x 3300Operation State10460 x 3400 x 9050Stirring VaneRev Speed26.5 r/minQuantity2 x 8Stirring MotorModelY180M-4Power2 x 18.5kwLifting MotorModelYEZ160L-4Power15kwPump MotorModel80JDB-45Power3 kw
