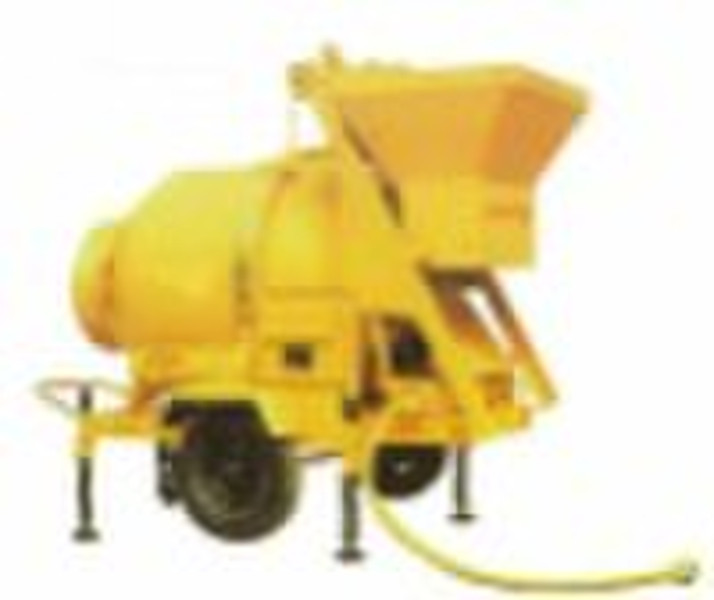

Drum Concrete Mixer JZC500

1. Description of Drum Concrete Mixer JZC500 ConcreteTransitMixers with electrical engine machines are the reversal mixer machines, the mixer canister is drove by the tooth circle. When it works, if you veer turn is mixing, and reversal turn is output material. It can mixer the plastic and the half dry hard concrete. And it is the ideal machines for construction fields, road, bridge project and all kinds of concrete parts factory. As a gravity type of double-conic reversing drum concrete mixer, the drum transmits by gear or friction wheel ,the drum rotates clockwise during mixing and anti-clockwise during discharging ,the mixer can mix plasticity and damp half-dry concrete ,.2. Main technical parameters: ModelJZC500Working PerformanceDischarging Capacity500LCharging Capacity800LProduction Capacity18-20 m3/hMixer Canister Rev Speed13 r/minMax Aggregate Diameter40-60mmWater Supply Precision ≤2%MotorStirring Motor7.5kwLifting Motor7.5kwPump Motor0.75 kwTire Specifications7.50-16Max.Towing Velocity20km/h Overall Dimensions (LxWxH) (mm)5226x2200x5460Total Weight3000kg
